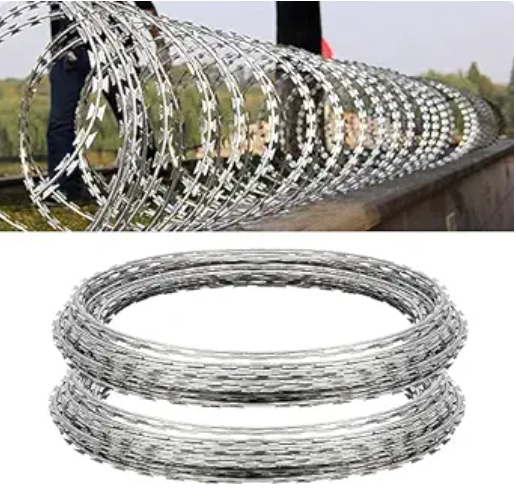

Razor Wire Introduction
Razor wire, also known as razor mesh or razor wire fence, is a highly effective security material. It consists of sharp metal blades and high-tensile strength steel wire, providing strong deterrence and protection. Designed to prevent and deter intruders, razor wire is ideal for use around walls, border protection, and important facilities.
Features:
- High Strength and Durability: Razor wire is made from high-tensile galvanized or stainless steel blades and steel wire, capable of withstanding extreme environmental conditions, offering exceptional strength and durability.
- Effective Protection: The sharp blade design provides strong deterrence, with high blade density to effectively prevent intruders from attempting to cross.
- Easy Installation: Razor wire can be quickly installed on walls, fences, or other structures by simply unrolling and securing it, providing immediate security protection.
- Low Maintenance Cost: Due to its robust and durable structure, razor wire requires relatively low maintenance and does not need frequent replacement or repair.
- Various Specifications: Razor wire comes in various specifications and sizes, customizable to meet specific security needs.
Applications:
- Military Facilities: Used to protect military bases, warehouses, and other sensitive areas, ensuring security and preventing illegal intrusion.
- Border Security: Used for border protection, effectively preventing illegal crossings and smuggling activities.
- Industrial Sites: Used for perimeter security of factories, warehouses, and other industrial sites, preventing theft and vandalism.
- Civilian Security: Used for security fencing in residential areas, farms, and public places, providing additional security.
Installation and Maintenance:

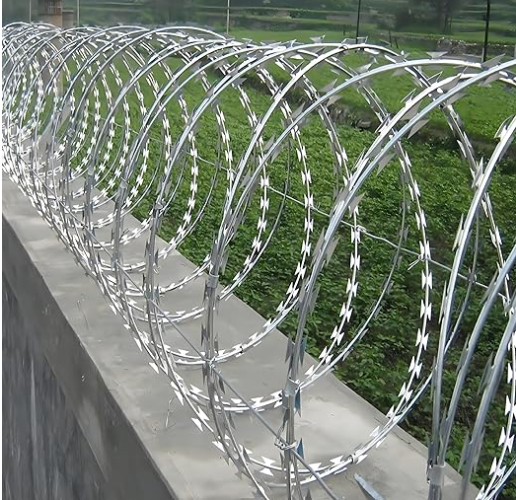

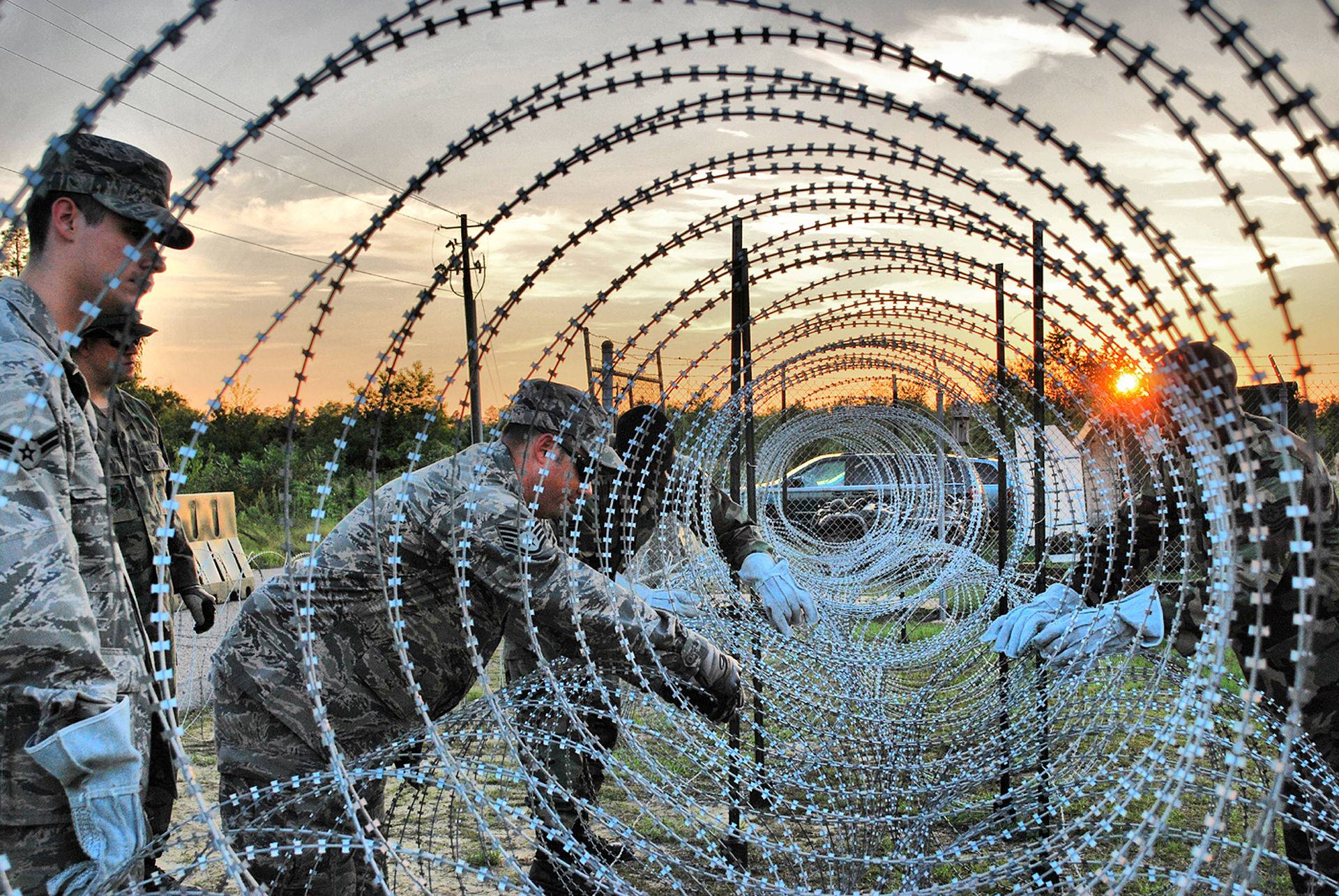

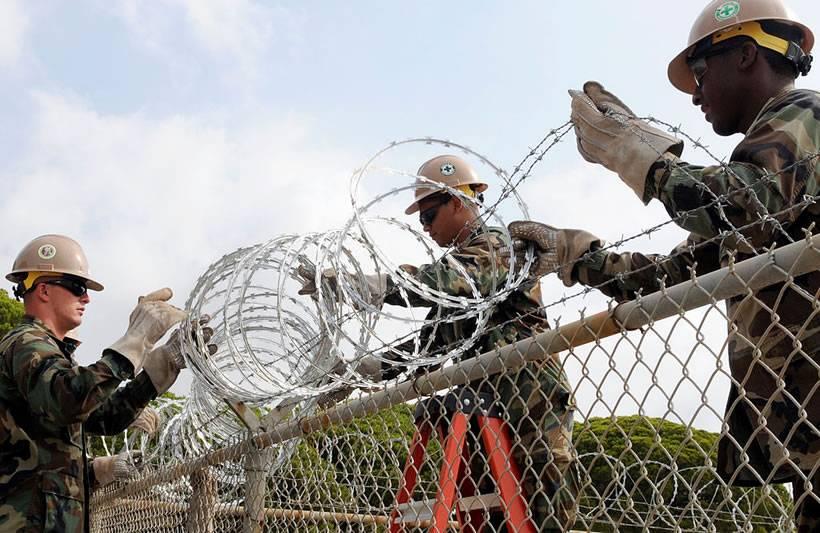

- Installation: Razor wire is typically coiled for easy transport and installation. During installation, it is unrolled and secured to support structures such as wall tops, fences, poles, etc., using bolts or clamps.
- Maintenance: Maintenance of razor wire is relatively simple, requiring periodic checks of attachment points and blade integrity to ensure no loosening or damage. Damaged sections can be replaced locally to maintain overall protection.

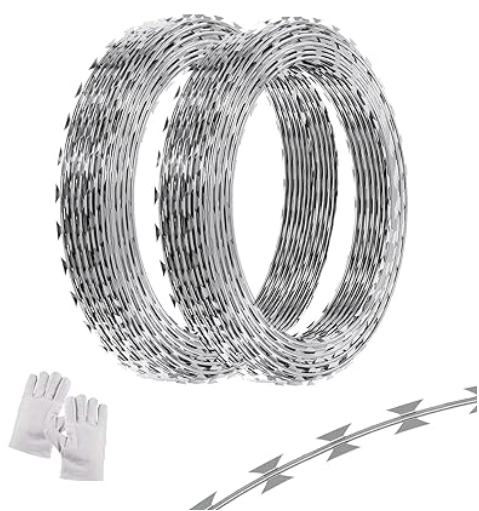

Specifications and Parameters:
- Material: Galvanized steel, stainless steel
- Blade Types: BTO-10, BTO-22, CBT-65, etc.
- Wire Diameter: 2.5mm, 2.8mm, 3.0mm, etc.
- Coil Diameter: 450mm, 730mm, 980mm, etc.
- Length: Typically 5 to 15 meters per coil, customizable based on requirements
Mobile Security Barriers
Rapid Deployment:
- The system is designed to provide rapid protection – 75-1000 meter barriers of barbed tape/razor wire coils can be deployed in seconds.
- Barriers are fully reusable.
- Equipment is supplied to uplift and recompress the barrier into modules, simple to handle and compact to store.
- A single carrier unit can be quickly refilled to drop many miles of barrier in a short space of time.
- Systems can be tailored to meet customers’ exact requirements.
- No police or military organization can afford to be without this valuable tool.
Razor Wire Specifications Table:
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
|---|---|---|---|---|
| 450 mm | 33 | 8 m | CBT-65 | Single coil |
| 500 mm | 41 | 10 m | CBT-65 | Single coil |
| 700 mm | 41 | 10 m | CBT-65 | Single coil |
| 960 mm | 53 | 13 m | CBT-65 | Single coil |
| 500 mm | 102 | 16 m | BTO-10.15.22 | Cross type |
| 600 mm | 86 | 14 m | BTO-10.15.22 | Cross type |
| 700 mm | 72 | 15 m | BTO-10.15.22 | Cross type |
| 800 mm | 64 | 10 m | BTO-10.15.22 | Cross type |
| 960 mm | 52 | 9 m | BTO-10.15.22 | Cross type |

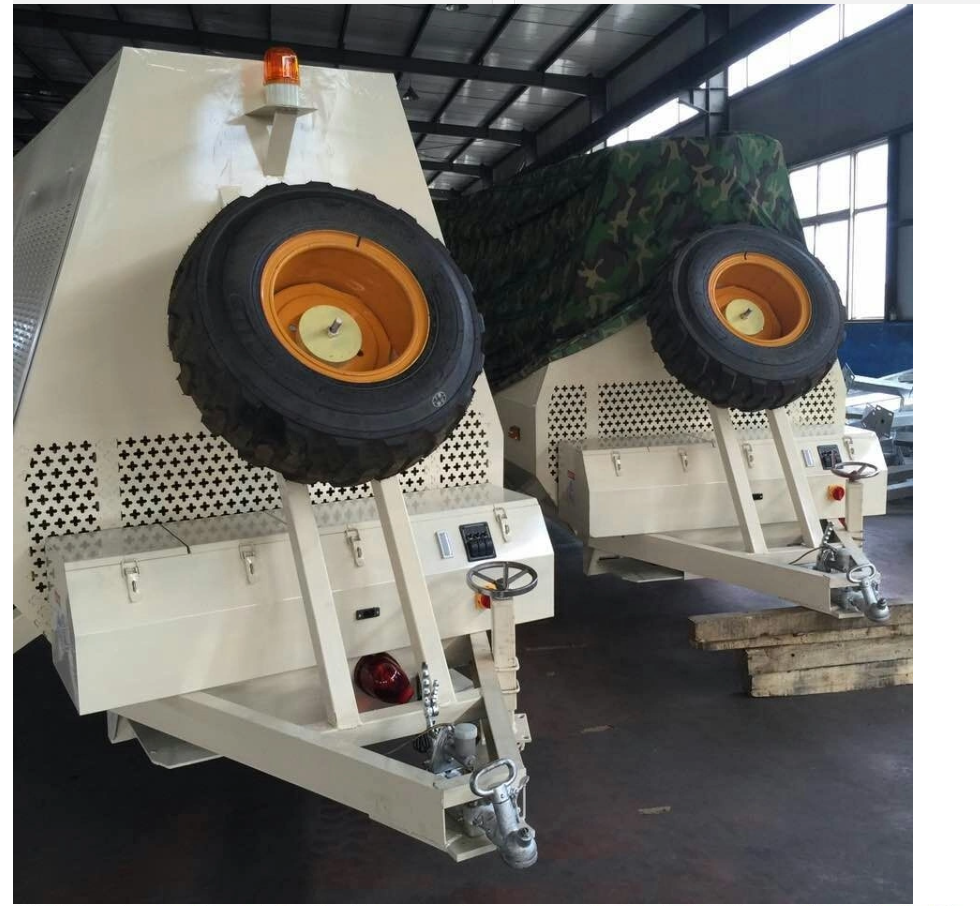

Specifications
- Material: Hot dipped galvanized steel, stainless steel 400, or equivalent material.
- Trailer Dimensions:
- Length (including axis of traction): 6050 mm
- Height: 2190 mm
- Width: 2160 mm
- Trailer Color: Olive-green, orange, or customized.
- Weight (without razor wire): 1700 kg
- Distance to Ground (minimum): 400 +/- 10 mm
- Wheel Spacing: 1700 +/- 10 mm
- Wheel Sizes:
- Front Wheel: 10″
- Rear Wheel: 700-R15
- Trailer Windows: 3 on each side
- Concertina Time: 3 – 5 minutes
- Stretching Length (maximum): 75 m
- Motorized Collector Type: Semi-manual or automatic
- Accessories: Caution light, toolkit, leather gloves, spare tire
- Additional Information: Adjustable wheel and connecting link; trailer windows can be opened or closed
Features
- Multi-Functionality: Can both stretch and contract the razor wire.
- Manpower and Time Saving: Operates conveniently and rapidly, requiring only 2-3 people to complete the process in 3-5 minutes.
- High Mobility: Easily hauled by a front car to any designated site for optimal control.
- High Barricading Value: Ideal for sudden or planned riots and protests, minimizing losses significantly.
- Reusable: Made of high-quality stainless steel or equivalent material, suitable for repeated use.
- Customizable: Trailer color can be painted according to customer specifications.

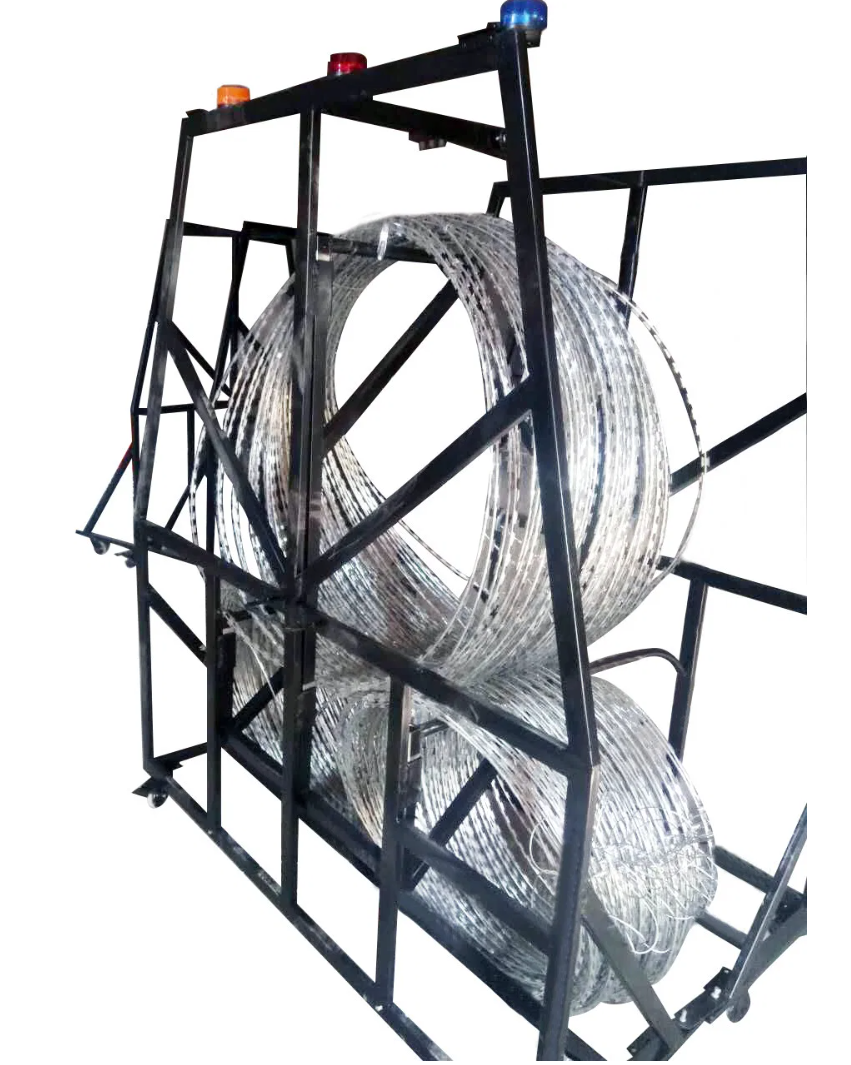

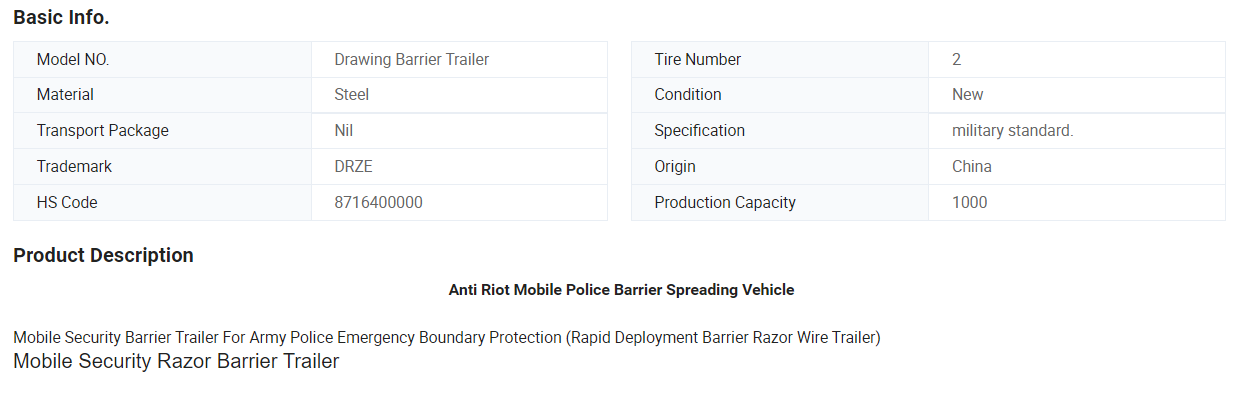

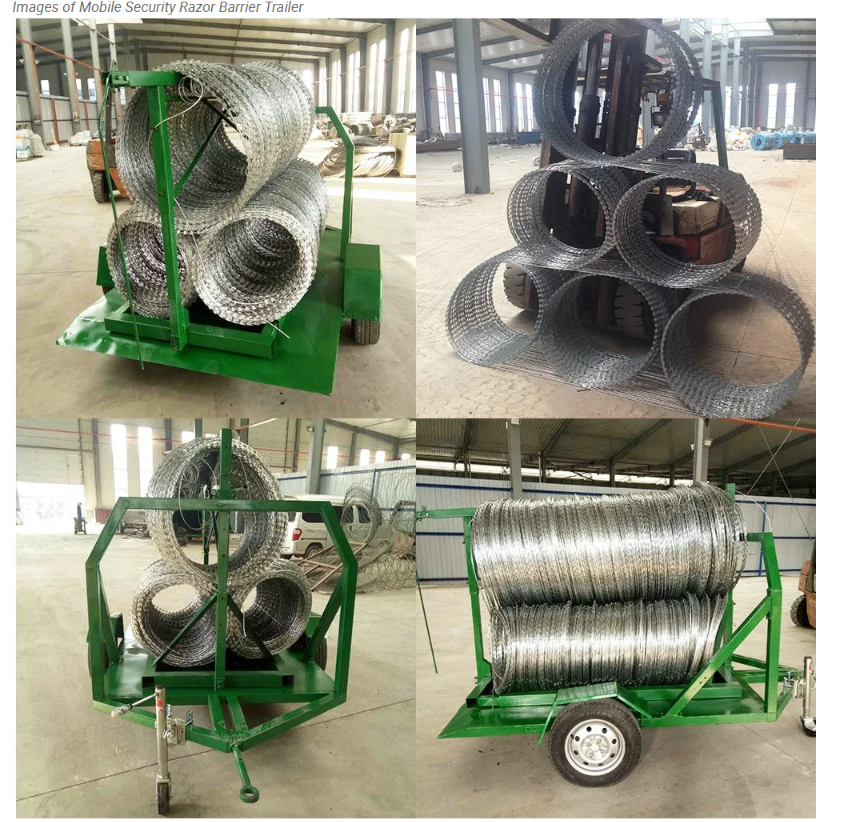

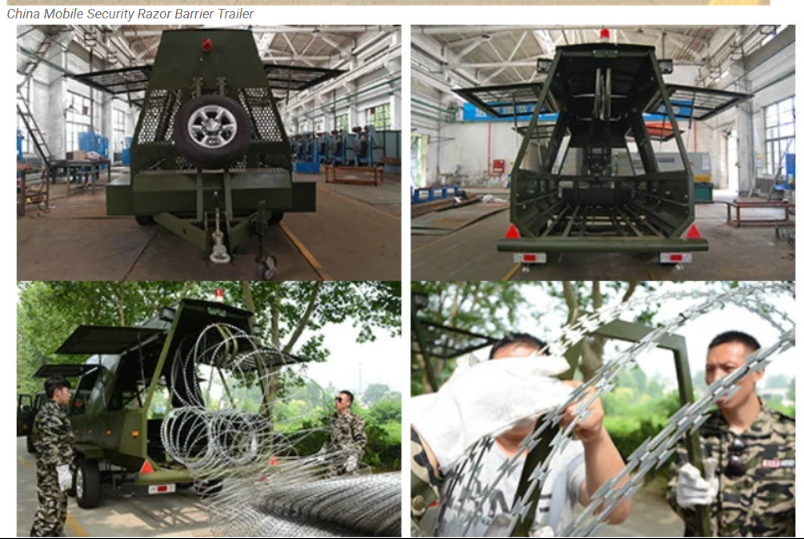

Mobile Razor Wire Security Barrier Specification
- Dimensions (folded): 700 × 1112 × 1232 mm
- Length (unfolded): 10-80 m
- Height: 1 m
- Weight: 50-200 kg
- Diameter of the Helix: 900-1000 mm
- Deployment Time: 1-3 minutes
- Clotting Time: 5-10 minutes
Rapid Deployment High-Density Razor Mesh
- Quick Protection: Mobile security barrier concertina can deploy 75-1000 meters of razor wire barrier within seconds.
- Reusable: The barrier can be reused multiple times.
- Easy Handling and Storage: Can be uplifted and re-compressed into modules, making it easy to handle and store.
- Customizable: Adjusted to meet specific customer requirements.
- Essential for Military Organizations: Effective isolation barrier for military use.
- Wide Civilian Application: Also suitable for use in various civilian areas.
Most Popular Size
- Barrier Length (after uncovering): ≥ 75m
- Barrier Height (after uncovering): ≥ 1600mm
With its robust construction, rapid deployment capability, and customizable features, the Mobile Security Razor Barrier Trailer is an indispensable tool for both military and civilian applications, offering high barricading value and operational efficiency.

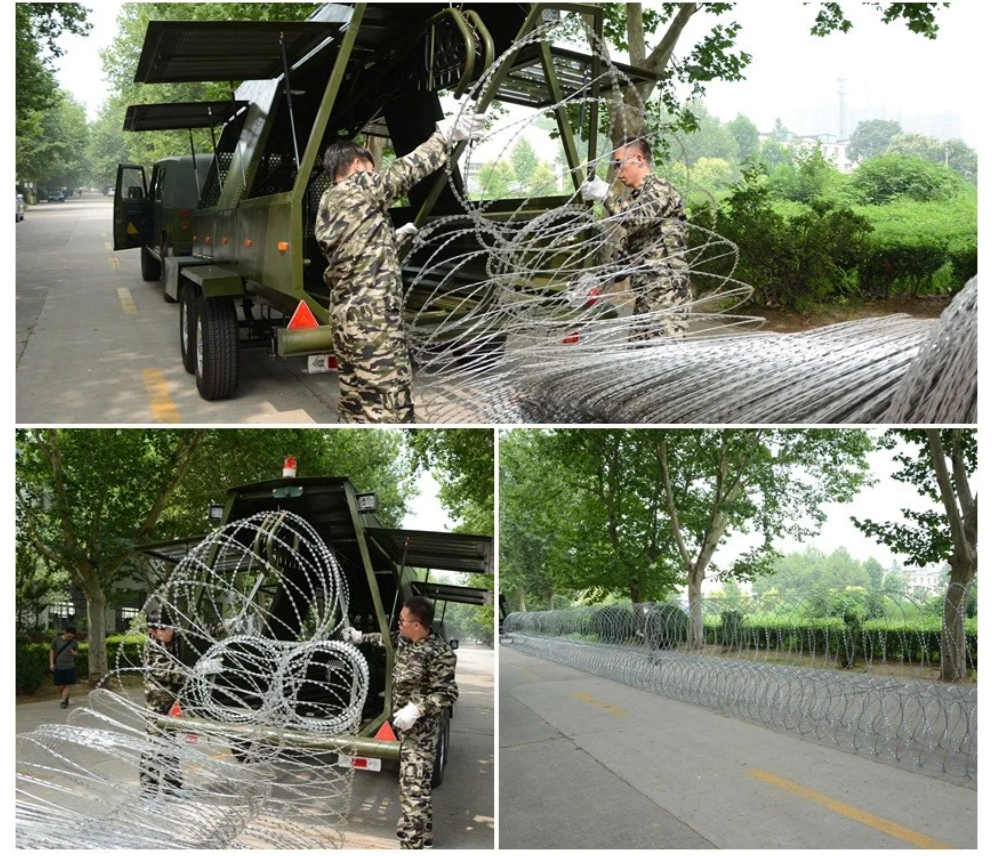

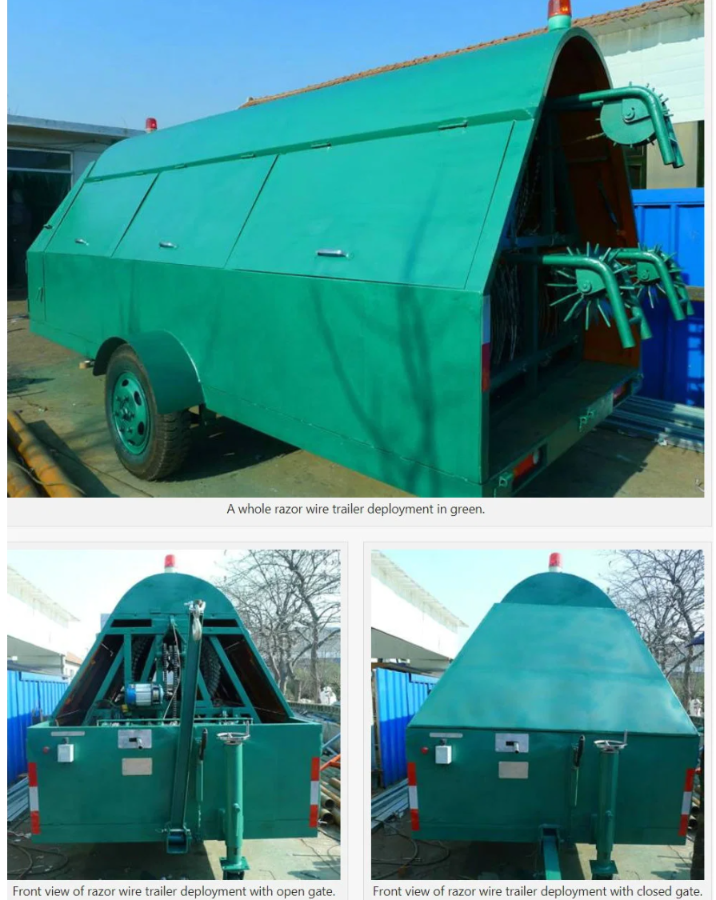

- Deployment:
- The razor wire barrier trailer can be quickly moved to designated locations.
- Open the tailgate and set up the barriers easily and swiftly.
- For high-security sites, ensure complete coverage with razor wire; additional coils can be used to achieve optimal control.
- Withdrawal:
- Reverse the front vehicle to automatically retract the razor wire tape/line back into the trailer without any human intervention until it is fully retracted.
Application:
- Establishing security barriers for national defense
- Controlling riots and protests
- Defending coastlines from enemy forces
- Setting up roadblocks for accidents
- Securing highway construction sites or important entry and exit points
Advantages:
- Quick and Easy Operation:
- Requires only three people to set up and retrieve the razor wire obstacles, significantly saving human resources.
- Mechanical Independence:
- Operates without mechanical power, electricity, batteries, motors, or engines, preventing issues related to mechanical failure, battery shortages, electrical failures, or engine problems.
- Designed to avoid damage from rioters to mechanical parts, batteries, etc., ensuring security.
- High Mobility:
- Setup and withdrawal can be completed in 3-5 minutes.
- Vehicles can easily attach to the trailer, making the system highly mobile and adaptable for use with various vehicles.
- Effective Isolation:
- The razor wire barrier system creates a sharp, 1.7-meter-wide fence, achieving excellent isolation.
- Ideal for minimizing personal, financial, and physical losses during unexpected or planned riots and protests.
- High-Security Control:
- Provides a robust barrier for high-security applications, ensuring maximum control and protection.
With these features, the Mobile Security Razor Barrier Trailer offers a reliable, efficient, and versatile solution for a wide range of security needs, from national defense to civilian applications.
